M I L L E N I X
===============
Digital Smart Lock
================
Millenix adalah merk Kunci Pintu Digital Smart millenial masa kini yang terbuat dari material berkualitas dengan daya tahan dan sistem keamanan yang sangat tinggi.
Semua produk dibuat dengan cermat dan sangat presisi serta melalui quality control ketat yang mengadopsi standard kunci International.

Model: MX- 2020
Warna : Silver & Black
Garansi Resmi 2 tahun

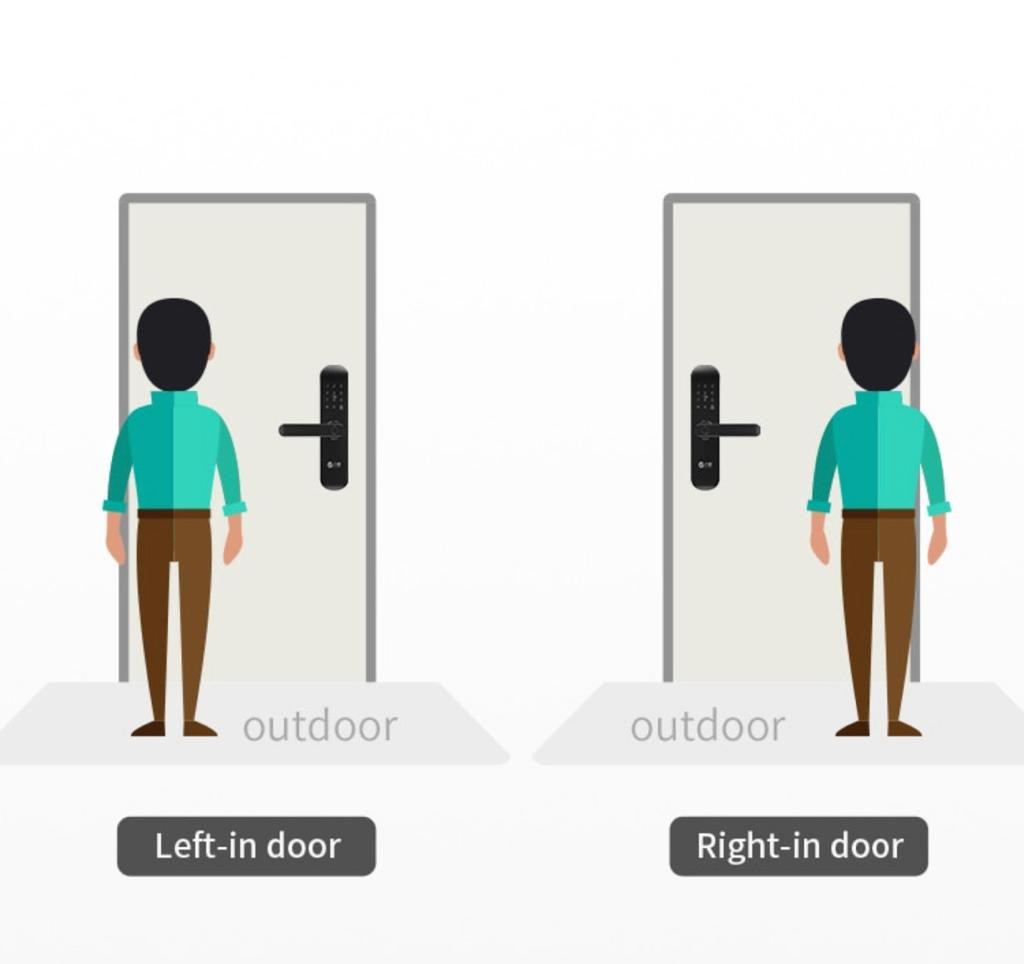

Cara buka Handle : Buka Kanan kedalam / Buka Kiri ke dalam.
(mhn di tuliskan di keterangan order utk posisi buka pintu nya)

Deskripsi:
1. Tiga metode membuka kunci independen: Kata sandi, kartu dan kunci mekanis.
2. Resistansi Jimmying, alarm penutupan palsu dan alarm tegangan rendah
3. 200 lembar kartu tamu dan 2 kartu master tersedia.
4. 50 set kata sandi pembuka dan 1 set kata sandi utama.
5. Atur ulang fungsi untuk memastikan keamanan kunci jika kartu atau kunci hilang.
6. Pengaturan buka-buka: ： 3 + 7 + tekan tombol buka, pintunya dalam status buka-buka.

Keuntungan:
1. Terbuat dari 304 Bahan stainless steel, Tahan Lama, Anti-Korosi, Warnanya tidak akan pudar dalam waktu lama.
2. Buka dengan kode sandi dan kartu. Mendukung Maksimum 1 kartu Master, 200 kartu pengguna
Maksimal 1 kode sandi utama, 50 kode sandi pengguna.
3. Anda dapat memasukkan nomor apa pun sebelum atau setelah kata sandi yang benar (Menjaga agar tidak mengintip) Secara terus-menerus memasukkan kata sandi yang salah 5 kali, tombol akan terkunci selama 2 menit.
5. Desain pegangan yang aman untuk melindungi setiap upaya pembobolan dan lulus uji 300 ribu waktu.
6. Lubang Kunci Mekanik Tersembunyi, pada saat baterai mati, sehingga Anda dapat menggunakan kunci untuk membuka pintu.

Note : Buklet Panduan berbahasa English.

Package Includes:
1 x Door Lock
1 x Back Plate
2 x keys
3 x cards

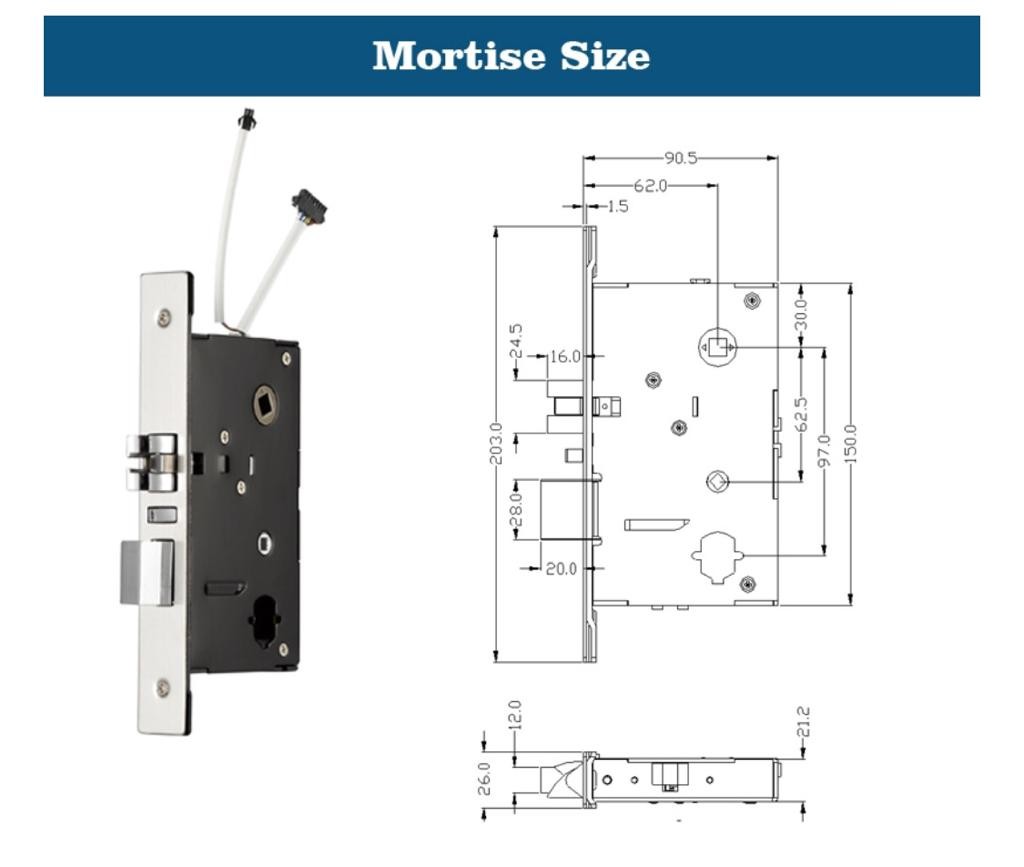

1 x Mortise
1 x Strike Plate
1 x Strike Box
1 x Installation Kit

Introduction :
Password plus Mifare card office/ smart home security locks is one of the components for IC card system.
The Mifare card can be used on another card equipment. The lock system is powerful and easy to use, can achieve more than one card door, more than one card to open the door, and the door is set to normally open, leave the door lock (the door is not locked), the door will automatically alarm. Password, open the door and remove all the cards formulated by the user, to minimize security vulnerabilities.
The system uses Mifare card, proximity card is a popular type (such as residential parking, etc.).
The door lock is widely used in modern offices, office buildings, residential apartments, villas, etc.

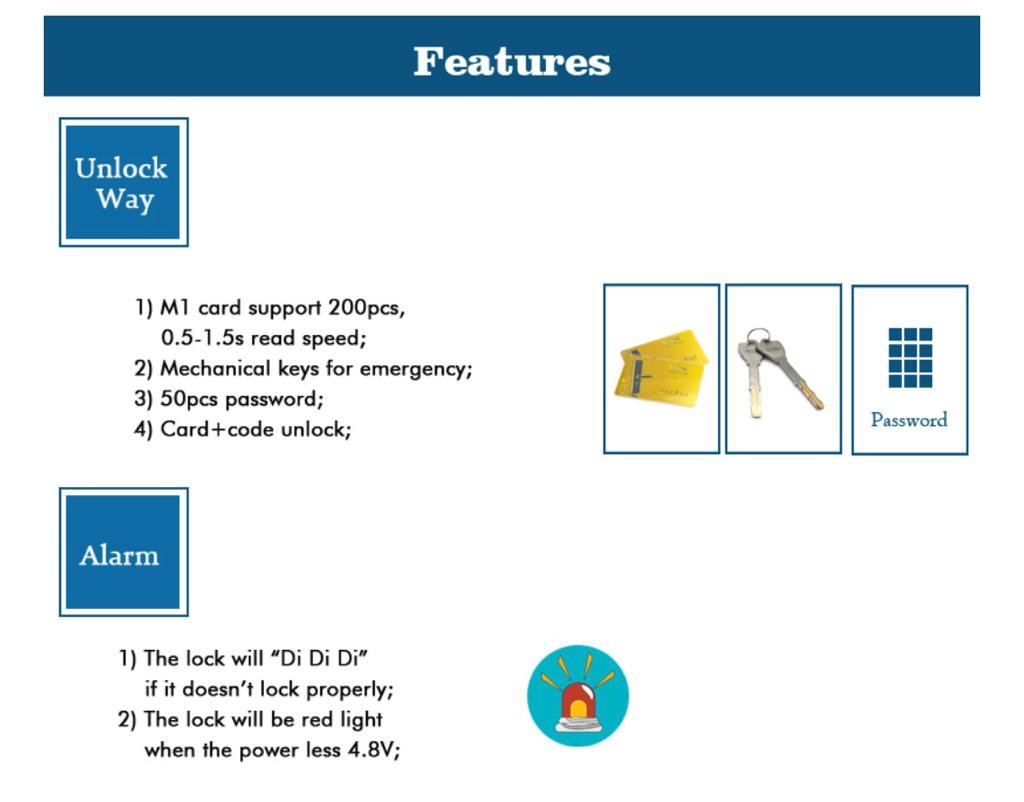

Main features:
→ Card Type: Mifare proximity card
→ Touch keys password
→ Microwave mode detection cards close
→ Unlock mode can set your own: Mifare cards and password can unlock the independently / Mifare card and password to unlock the same time
→ Card store in lock, no system software, set up two management cards, 200 door card
→ The password can modify, easy management, 50 user password
→ Password support garbled input, can enter up to 32
→ Passage Feature, keep the door open for passby
→ Door "false lock" alarm → Low power alarm → Battery-powered, external emergency power supply.

Main Specifications:
→ Operating voltage: 6.0V (4 alkaline batteries)
→ Static power consumption: <100uA
→ Dynamic power consumption: <300mA
→ Battery life: 10 months (section 45 # genuine alkaline batteries)
→ Low Voltage Notification: 4.8V
→ Read Card Range:> 25mm
→ Operating Temperature: 0 ° C - 70 ° C
→ Operating Humidity: ≤80%

Operation Guide
Initializing (Factory Reset):
Use mechanical key to unlock the door repeatly, 5 times, the lock will be reset to default, Management password 12345678, opening mode stand alone.  For security, we highly recommend to do the reset before doing anything once you get the lock.

Activate the keypad:
Touch any number, or just slice the finger over the keypad, the blue backlit will light on. This means the keypad is activated, can enter passwords to open lock, or enter codes to do configuration. During keypad active, if password incorrect, Lock will generate 3 short beep sound, after the red led flash, can enter again. Input 3 times incorrect password keypad will turn off, need to activate again to use.

Passwords and Cards:
1 Management Password (8 digits); 50 User Passoword (6 digits), number 01-50, according to adding sequence.
1 Management Card 200 User Card, number 001-200, according to Adding sequence. Recommend to build a user manage sheet to record the users, this will help to manage the users and good for further setup. Sample sheet as below:

Opening Mode
Mifare Keypad door lock system has the following two modes:
→ Standalone: Use a user password or a Mifare card to unlock door, any of them can work alone.
→ Combined: Mifare cards and password should be used together to open the door lock.

Switch Modes:
1. The lock after factory reset initialization open mode is standalone.
1.1 Switching from stand-alone to combined operation mode is as below:
      Enter Management PasswordPress Key ButtonPress 6 Press Key Button. To exit press the * key;
1.2 Combined Mode switch to stand-alone:
      Enter Management PasswordPress Key ButtonPress6 Press Key Button

Management:
Add Management Card:
      After Lock factory reset, the first Card swipe will become Management Card
Modify Management Password: (clear all users)
      Enter Old Management PasswordPress Key ButtonPress 1 Enter New Management PasswordPress Key ButtonEnter New Management  PasswordPress Key Button.

Add Users:
1. User password:  Enter Management PasswordPress Key ButtonPress 8Enter User PasswordPress Key ButtonEnter User PasswordPress Key Button.
2. User Card: Swipe Management Card Two timesSwipe User card 1 time to add, Keep swiping more cards can add a bulk of user, will auto give user card number to these cards according to swipe sequence.

Remove Users:
1. Remove one User Password: Enter Management PasswordPress Key ButtonPress 4Enter The Previous Password of the one you want to removePress Key Button.  Keep enter more to  continue delete more.
2. Remove All User Password Enter Management PasswordPress Key ButtonPress 0Press Key ButtonPress 0Press Key Button.
3. Remove one User Card Swipe Management Card 3 TimesSwipe The Card want to remove. Swipe more to continue remove more.
4. Remove a Lost User Card Swipe Management Card 4 TimesSwipe Previous Card of the one Lost.
5. Remove All user Cards: Swipe Management Card 5 Times.

Open Door:
1. Stand-alone mode opening:
a. Swipe a user card, lock will unlock for 5 seconds, after that auto close
b. Entry a user password, and then press key button, Lock will unlock for 5 seconds, after that will auto close
c. During the 5 seconds unlock status, user can operation below function: Modify password: Press 1Enter New PasswordPress Key ButtonEnter New PasswordPress Key Button. Activate Passage Mode: Press 3Press 7Press Key Button. Lock will keep unlock, During the time, Enter a user password or Swipe a user card will lock the lock again

2. Combined mode opening:
a. Use management password or management card to unlock, single use, not need to combine
b. Enter user password and swipe a user card to unlock, or swipe the card firstly and then enter password.
    Note: In combined mode not allow to modify password   If input incorrect password for 5 times, keypad will lock up 2 minutes.   Enter 37Press Key Button to activate Passage mode

Other Functions:
1. Invalid user password notification: 3 Beep with Red LED flash
2. Invalid user card notification: 6 Beep with Red LED flash.
3. Low Power notification: When open the door, 3 Long Beep sound with Red LED Flash, please replace new batteries ASAP.
4. Garbled input password function: Allow user to enter any digits before and after the correct password, to make the password mixed in a long number, increase security, the number max up to 32 digits. For example, a user password is 123456, can enter 0987457[123456]546586,any length within 32 digits to unlock the door
